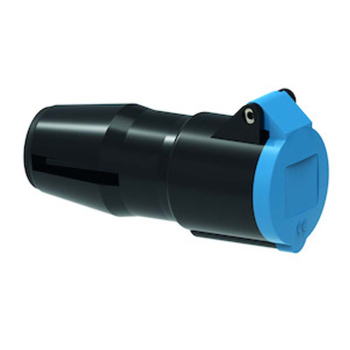

Connector 16A 230V 3P IP44
Stock Code: 310095
EAN: 4024941068291
EAN: 4024941068291
| Amp Current | 16A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 127x71mm |
| Product Type | Connector |
IP44 Connector - 16A, 230V Connector, 3P, IP44, 6H with screw terminals
Enclosure made of Polyamide
The contacts are brass
With a maximum conductor size of 2,5 mm²
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
