Connector 63A 110V 4P IP67
Stock Code: 3183
EAN: 4024941031837
EAN: 4024941031837
| Amp Current | 63A |
|---|---|
| Voltage | 110V |
| Pins | 3P+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 4H |
| Overall Dimensions | 251x110x115 |
| Product Type | Connector |

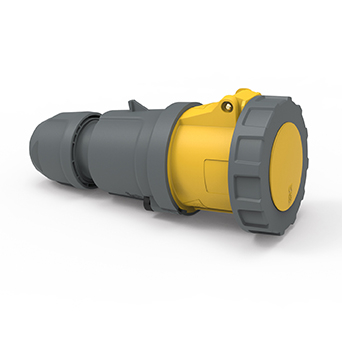

63 AMP connector – the 3183 is a 63A, 110V connector (coupler), 4-Pin, IP67, 4H. It has a screw-terminal connection and a multi-grip cable gland.
- Industrial 63 AMP connector (coupler)
- 63A, 110V, 4-Pin, 4H
- Traditional screw terminal
- IP67 watertight
- Part-code 3183
- Manufactured by Bals
- Manufactured from polyamide
- Multi-Grip cable gland
- For cable diameter 16mm up to 36mm
- Brass nickel-plated contacts with a maximum conductor size of 16mm²
BALS “Multi-Grip” cable gland features a rubber seal which is firmly moulded on so that it facilitates connection. Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
Part of a wide range of Bals industrial plugs & sockets, which also includes an alternative Quick-Connect screwless technology connector.
