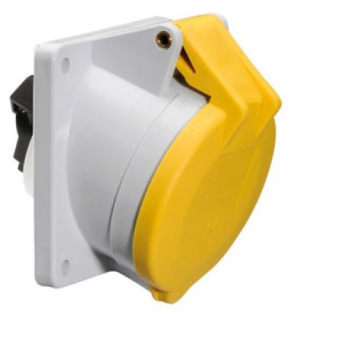

16A 110V 3P P/SKT IP44 ANG 85X85 FLANGE 70X70 FIXING
Stock Code: 12079
EAN: 4024941120791
EAN: 4024941120791
| Amp Current | 16A |
|---|---|
| Voltage | 110V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | 4H |
| Overall Dimensions | 85x85mm |
| Flange Size/Fixing Centers | Flange 85x85/Fixing Centers 70x70 |
| Product Type | Socket |
Panel Mounting Socket
16A, 110V, 3P, IP44, 4H with screw terminals
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are made of brass
With a maximum conductor size of 4,0 mm²
Flange size of 85x85 with fixing centers of 70x70
The inclination is 20°
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
