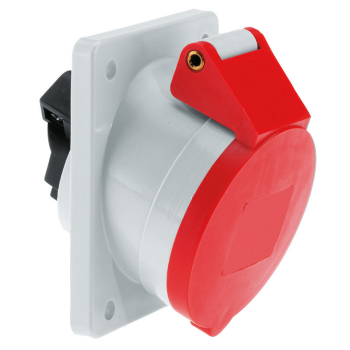

Panel Mounting Socket 32A 400V 5P IP44
Panel Mounting Socket 32A 400V 5P IP44

Panel Mounting Socket 32A 400V 5P IP44

Stock Code: 1215
EAN: 4024941012157

Amp Current32A
Voltage400V
Pins3P+N+E
IP RatingIP44
Connection TechnologyScrew Terminal
H Position6H
Overall Dimensions85x85mm
Flange Size/Fixing CentersFlange 85x85/Fixing Centers 70x70

Descriptions

Panel Mounting Socket Outlets Angled

32A, 400V, 5P, IP44, 6H with screw terminals

Enclosure made of Polyamide

The contact carrier is made of polyamide, the contacts are made of brass

With a maximum conductor size of 10,0 mm²

Flange size of 85x85 with fixing centers of 70x70

The inclination is 20°

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941012157
