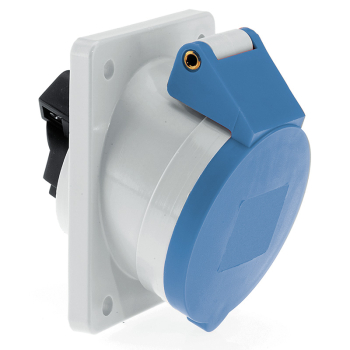

Panel Mounting Socket 16A 230V 4P IP44
Panel Mounting Socket 16A 230V 4P IP44

Panel Mounting Socket 16A 230V 4P IP44

Stock Code: 1220
EAN: 4024941012201

Amp Current16A
Voltage230V
Pins3P+E
IP RatingIP44
Connection TechnologyScrew Terminal
H Position9H
Overall Dimensions100x92x80
Flange Size/Fixing CentersFlange 100x92, Fixing Centers 85x77

Descriptions

Panel Mounting Socket Outlets Angled

16A, 230V, 4P, IP44, 9H with screw terminals

Enclosure made of Polyamide

The contact carrier is made of polyamide, The contacts are brass

With a maximum conductor size of 4,0 mm²

Flange size of 100x92 with fixing centers of 85x77

The inclination is 20°

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941012201
