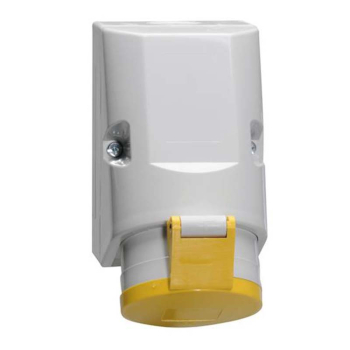

Surface Mounting Socket 16A 110V 4P IP44
Surface Mounting Socket 16A 110V 4P IP44

Surface Mounting Socket 16A 110V 4P IP44

Stock Code: 113
EAN: 4024941001137

Amp Current16A
Voltage110V
Pins3P+E
IP RatingIP44
Connection TechnologyScrew Terminal
H Position4H
Overall Dimensions100x75mm

Descriptions

Surface Mounting Socket

16A, 110V, 4P, IP44, 4H with screw terminals

M20 Top Entry

Enclosure made of Polyamide

The contact carrier is made of polyamide, the contacts are brass

With a maximum conductor size of 4,0 mm²

The cable entry is one at top open and one at bottom and one rear side closed

Lower part of housing rotatable by 180°

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941001137
