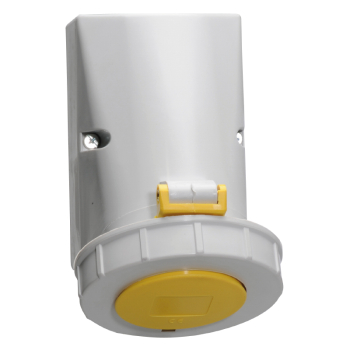

Surface Mounting Socket 16A 110V 3P IP67
Surface Mounting Socket 16A 110V 3P IP67

Surface Mounting Socket 16A 110V 3P IP67

Stock Code: 11303
EAN: 4024941113038

Amp Current16A
Voltage110V
Pins2P+E
IP RatingIP67
Connection TechnologyScrew Terminal
H Position4H
Overall Dimensions87x64mm

Descriptions

Surface Mounting Socket Outlets

16A, 110V, 3P, IP67, 4H with screw terminals

M20 Top Entry

Enclosure made of Polyamide

The contact carrier is made of polyamide, the contacts are brass

With a maximum conductor size of 4,0 mm²

The cable entry is one at top open and one at bottom and one rear side closed

Lower part of housing is rotatable by 180°

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941113038
