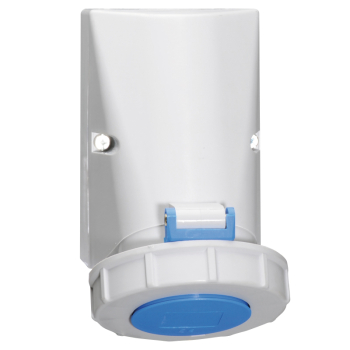

Surface Mounting Socket 32A 230V 3P IP67
Surface Mounting Socket 32A 230V 3P IP67

Surface Mounting Socket 32A 230V 3P IP67

Stock Code: 11313
EAN: 4024941113137

Amp Current32A
Voltage230V
Pins2P+E
IP RatingIP67
Connection TechnologyScrew Terminal
H Position6H
Overall Dimensions126x83mm

Descriptions

Surface Mounting Socket Outlets

32A, 230V, 3P, IP67, 6H with screw terminals

M25 Top Entry and 2 x M25 Bottom Entry

Enclosure made of Polyamide

The contacts are brass

With a maximum conductor size of 10,0 mm²

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941113137
