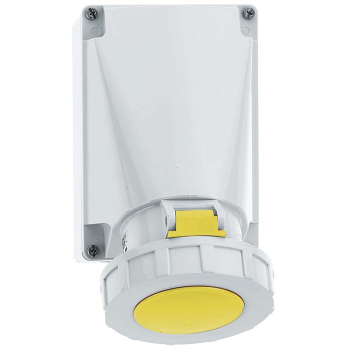

Surface Mounting Socket 63A 110V 3P IP67/IP69
Surface Mounting Socket 63A 110V 3P IP67/IP69

Surface Mounting Socket 63A 110V 3P IP67/IP69

Stock Code: 1156
EAN: 4024941011563

Amp Current63A
Voltage110V
Pins2P+E
IP RatingIP67
Connection TechnologyScrew Terminal
H Position4H
Overall Dimensions170x118mm
Product TypeSocket

Descriptions

63 AMP surface socket – the 1156 is a 63A, 110V surface mounting socket, 3-Pin, IP67/IP69, 4H. It has screw-terminal terminals.

  • Industrial 63 AMP surface socket/wall-mounted socket
  • 63A, 110V, 3-Pin, 4H
  • Traditional screw terminals
  • IP67 watertight / IP69
  • Surface-mounting socket
  • Part-code 1156
  • Manufactured by Bals
  • Enclosure manufactured from polycarbonate
  • M40 top entry (open) and 2 x M32 bottom entry (closed)
  • Brass nickel-plated contacts with a maximum conductor size of 25mm²

Part of a wide range of Bals industrial surface sockets, which also includes switched-interlocked sockets and panel sockets.

EAN: 4024941011563
