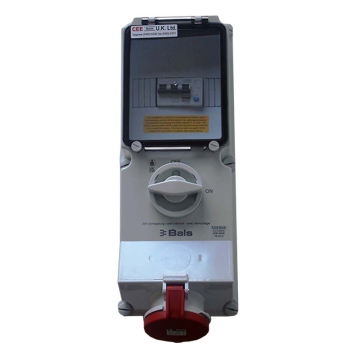

Switched Interlocked RCD Protected Socket 63A 400V 5P IP44 A Type
Stock Code: 880464-A
EAN: 5060943542406
EAN: 5060943542406
| Amp Current | 63A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP44 |
| Connection Technology | Pre-Wired |
| H Position | 6H |
| Overall Dimensions | 500x180mm |
| Protective Devices | 63A 30MA 4P RCD Type A |
| Product Type | RCD Interlocked Socket |
Switch Interlocked Socket with Protection
63A, 400V, 5P, IP44, 6H pre-wired to RCD
Socket protected by 63A 30MA 4P RCD Type A
Other circuit protection available upon request
With a maximum conductor size of 25,0 mm² to RCD, 10 mm² to Earth
Height x Width: 500x180mm
EAN: 5060943542406
All back boxes are supplied drilled for cable entry: 3 x 32mm
