IP Rating | IP23 |
---|---|
Overall Dimensions | 454mm x 384mm x 305mm |
Power Rating | 10kVA |
Input | 240V |
Output | 110V |
Mount Type | Wall / Floor Mounted |

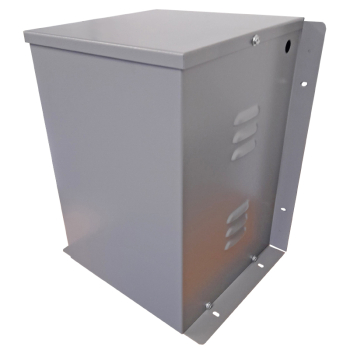

Continuous Rated Wall Mounted Transformer
10kVA isolation transformer
Input: 240V
Output: 110V CTE (55-E-55)
Dimensions: 454mm x 384mm x 305mm
Hardwired input/output
110V CTE output continuous rated transformer
Steel vented enclosure which has fixing flanges for both wall or surface mounting
Internal terminal connection via a 20mm gland entries
Wall/Floor Mounted
Features:
Available to be customized to your requirements
