IP Rating | IP23 |
---|---|
Overall Dimensions | 454mm x 384mm x 305mm |
Power Rating | 7.5kVA |
Input | 240V |
Output | 110V |
Mount Type | Wall / Floor Mounted |

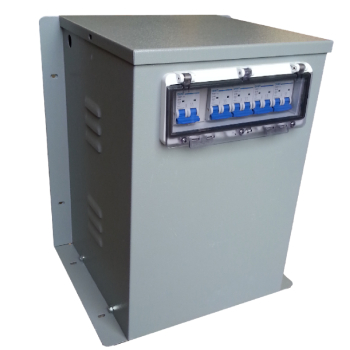

Continuous Rated Distribution Transformer
75kVA isolation transformer
Input: 240V
Output: 110V CTE (55-E-55)
Dimensions: 454mm x 384mm x 305mm
Hardwired input
110V CTE output continuous rated transformer
Steel vented enclosure which has fixing flanges for both wall or surface mounting. 4x110V outgoing circuits protected by 4xC16A DPMCB's housed in a hinged window.
Internal terminal connection
Wall/Floor Mounted
Features:
Available to be customized to your requirements
