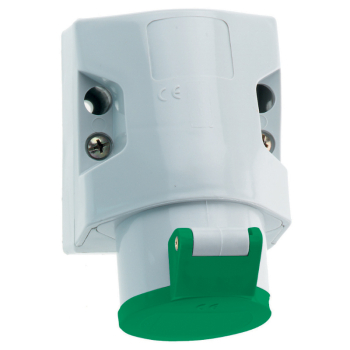

Low Voltage Surface Mounting Socket Outlet 32A <50V 2P IP44
Low Voltage Surface Mounting Socket Outlet 32A <50V 2P IP44

Low Voltage Surface Mounting Socket Outlet 32A <50V 2P IP44

Stock Code: 4113
EAN: 4024941041133

Amp Current32A
Voltage<50V
Pins2P
IP RatingIP44
Connection TechnologyScrew Terminal
H Position4H
Overall Dimensions80x70mm

Descriptions

Low Voltage Surface Mounting Socket

32A, <50V, 2P, IP44, 4H with screw terminals

Enclosure made of Polyamide

The contact carrier is made of polyamide, the contacts are brass nickel plated

M25 Top Entry

The cable entry is one at top open

With a maximum conductor size of 10,0 mm²

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941041133
