Connector 32A 230V 3P IP44
Stock Code: 31013-TLS
EAN: 4024941192774
EAN: 4024941192774
| Amp Current | 32A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 181x67mm |
| Product Type | Connector |

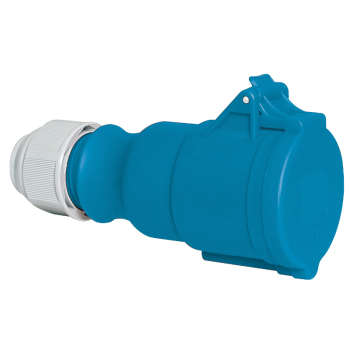

32 AMP connector – the 31013-TLS is a 32A, 230V connector (coupler), 3-Pin, IP44, 6H. It has a screw-terminal connection and a multi-grip cable gland.
- Industrial 32 AMP connector (coupler)
- 32A, 230V, 3-Pin, 6H
- Traditional screw terminal
- IP44 splashproof
- Part-code 31013-TLS
- Manufactured by Bals
- Manufactured from polyamide
- Multi-Grip cable gland
- For cable diameter 11mm up to 23.5mm
- Brass nickel-plated contacts with a maximum conductor size of 6mm²
This connector (coupler) has a one-piece housing.
BALS “Multi-Grip” cable gland features a rubber seal which is firmly moulded on so that it facilitates connection. Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
Part of a wide range of Bals industrial plugs & sockets, which also includes an alternative Quick-Connect screwless technology connector.
