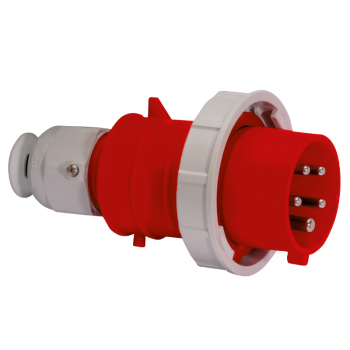

Plug 16A 400V 5P IP67

Stock Code: 21239
EAN: 4024941212397
Amp Current16A
Voltage400V
Pins3P+N+E
IP RatingIP67
Connection TechnologyQuick Connect / Screwless Terminal
H Position6H
Overall Dimensions154x87mm

Plug

16A, 400V, 5P, IP67, 6H with "Quick Connect" screwless terminals

Cable gland

Enclosure made of Polyamide

The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated

With a maximum conductor size of 2,5 mm²

For cable diameter from 10 up to max. 21 mm. Multi-Grip cable gland with gasket, integrated cable clamp and additional water evacuation openings

Made with BALS “Multi-Grip” cable gland which features a rubber seal which is firmly molded on so that it facilitates connection. This means no additional seals and rings are required. The 18 flexible laminae adapt to the cable diameter. The Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.

Connection Technology: Quick-Connect Screwless

- QUICK-CONNECT plugs have two sealing screws to secure the contact carrier to the housing
- Pressing the contact slide with your finger closes the terminal
- Lock engages automatically, and securely on closing
- Lock can be opened by turning clockwise with a screwdriver
- Reliable and permanent connection by means of spring-clamp technology
- The damage-free conductor clamping guarantees an optimum connection over the entire service life
- Rewiring without additional handling of the conductor

EAN: 4024941212397
