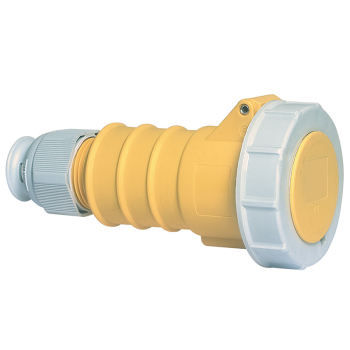

Connector 16A 110V 5P IP67
Stock Code: 31305
EAN: 4024941313056
EAN: 4024941313056
| Amp Current | 16A |
|---|---|
| Voltage | 110V |
| Pins | 3P+N+E |
| IP Rating | IP67 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 4H |
| Overall Dimensions | 168x87x92 |
| Product Type | Connector |
16 AMP connector – the 31305 is a 16A, 110V connector (coupler), 5-Pin, IP67, 4H. It has Quick-Connect screwless terminals and a multi-grip cable gland.
- Industrial 16 AMP connector (coupler)
- 16A, 110V, 5-Pin, 4H
- Quick-Connect screwless terminals
- IP67 watertight
- Part-code 31305
- Manufactured by Bals
- Manufactured from polyamide
- Multi-Grip cable gland
- For cable diameter 10mm up to 21mm
- Brass nickel-plated contacts with a maximum conductor size of 2.5mm²
QUICK-CONNECT connectors from Bals offer screwless connection, are quicker to install and are maintenance free, offering a long-term secure connection.
BALS “Multi-Grip” cable gland features a rubber seal which is firmly moulded on so that it facilitates connection. Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
Part of a wide range of Bals industrial plugs & sockets, which also includes an alternative traditional screw-terminal connector.
EAN: 4024941313056
