Plug 16A 400V 3P IP67
Stock Code: 21402
EAN: 4024941214025
EAN: 4024941214025
| Amp Current | 16A |
|---|---|
| Voltage | 400V |
| Pins | 2P+E |
| IP Rating | IP67 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 9H |
| Overall Dimensions | 147x71x71 |
| Product Type | Plug |

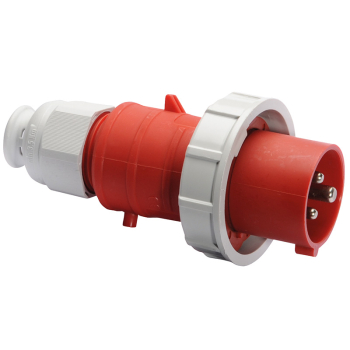

16 AMP plug – the 21402 is a 16A, 400V plug, 3-Pin, IP67, 9H. It has Quick-Connect screwless terminals and a multi-grip cable gland.
- Industrial 16 AMP plug
- 16A, 400V, 3-Pin, 9H
- Quick-Connect screwless terminals
- IP67 watertight
- Part-code 21402
- Manufactured by Bals
- Manufactured from polyamide
- Multi-Grip cable gland
- For cable diameter 8mm up to 18mm
- Brass nickel-plated contacts with a maximum conductor size of 2.5mm²
QUICK-CONNECT plugs from Bals offer screwless connection, are quicker to install and are maintenance free, offering a long-term secure connection.
BALS “Multi-Grip” cable gland features a rubber seal which is firmly moulded on so that it facilitates connection. Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
Part of a wide range of Bals industrial plugs & sockets, which also includes an alternative traditional screw-terminal plug.
EAN: 4024941214025
