Amp Current | 16A |
---|---|
Voltage | 400V |
Pins | 3P+N+E |
IP Rating | IP44 |
Connection Technology | Pre-Wired |
H Position | 6H |
Overall Dimensions | 335x245mm |
Gang | 4 Gang |

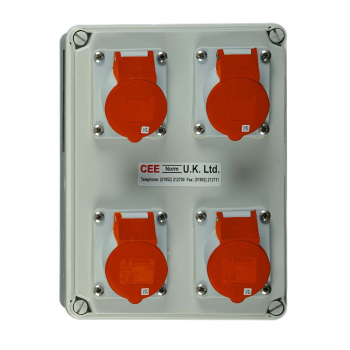

Socket on Backbox 4 Gang
16A, 400V, 5P, IP44, 6H comes pre-wired to Terminal Block
With a maximum conductor size of 16,0 mm²
Height x Width: 335x245mm
EAN: 5060943540266
Manufactured by CEENORM using BALS panel sockets
All back boxes are supplied undrilled for cable entry unless otherwise requested
Angled sockets fitted as standard
Straight sockets can be fitted on special request
CEENORM reserve the right to change the enclosure size
