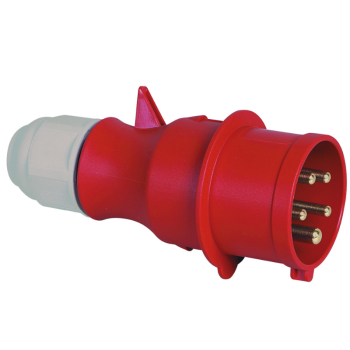

Plug 16A 400V 5P IP44
Stock Code: 203-TLS
EAN: 4024941192286
EAN: 4024941192286
| Amp Current | 16A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 137x175mm |
| Product Type | Plug |
16 AMP plug – the 203-TLS is a 16A, 400V plug, 5-Pin, IP44, 6H. It has a screw-terminal connection and a multi-grip cable gland.
- Industrial 16 AMP plug
- 16A, 400V, 5-Pin, 6H
- Traditional screw terminal
- IP44 splashproof
- Part-code 203-TLS
- Manufactured by Bals
- Manufactured from polyamide
- Multi-Grip cable gland
- For cable diameter 8mm up to 18mm
- Brass contacts with a maximum conductor size of 2.5mm²
This plug has a one-piece housing.
BALS “Multi-Grip” cable gland features a rubber seal which is firmly moulded on so that it facilitates connection. Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
Part of a wide range of Bals industrial plugs & sockets, which also includes an alternative Quick-Connect screwless technology plug.
EAN: 402494119286
