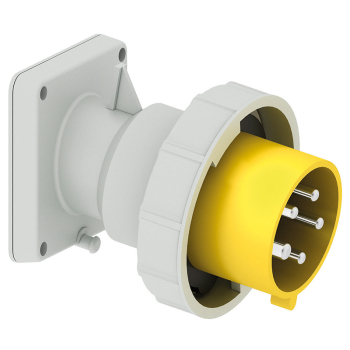

Panel Mounting Inlet 32A 110V 5P IP67
Stock Code: 27003
EAN: 4024941270038
EAN: 4024941270038
| Amp Current | 32A |
|---|---|
| Voltage | 110V |
| Pins | 3P+N+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 4H |
| Product Type | Appliance Inlet |
Panel Mounting Inlet Angled
32A, 110V, 5P, IP67, 4H with screw terminals
The inclination is 10°
Enclosure made of Polyamide
The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated
With a maximum conductor size of 6,0 mm²
Flange size of 85x85 with fixing centers of 70x70
Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem
EAN: 4024941270038
