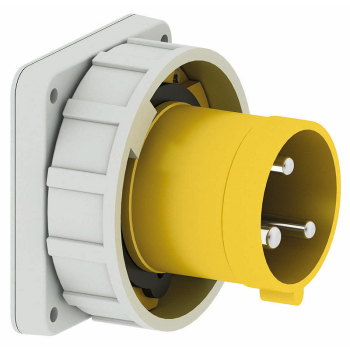

Panel Mounting Inlet 63A 110V 3P IP67
Panel Mounting Inlet 63A 110V 3P IP67

Panel Mounting Inlet 63A 110V 3P IP67

Stock Code: 2881
EAN: 4024941028813

Amp Current63A
Voltage110V
Pins2P+E
IP RatingIP67
Connection TechnologyScrew Terminal
H Position4H
Overall Dimensions113.5x113.5x114

Descriptions

Panel Mounting Inlet Straight

63A, 110V, 3P, IP67, 4H with screw terminals

Enclosure made of Polyamide

The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated

With a maximum conductor size of 6,0 mm²

Flange size of 110x106 with fixing centers 90x90

Collar in middle of flange

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941028813
