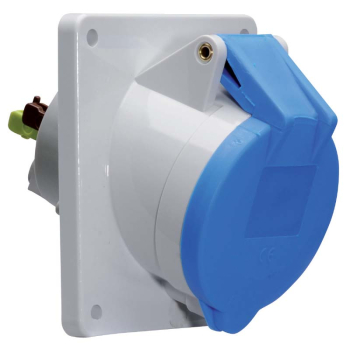

Panel Mounting Socket 16A 230V 3P IP44
Stock Code: 12772
EAN: 4024941127721
EAN: 4024941127721
| Amp Current | 16A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 6H |
| Overall Dimensions | 74x62mm |
| Flange Size/Fixing Centers | Flange 74x62/Fixing Centers 60x52 |
Panel Mounting Socket Outlets Angled
16A, 230V, 3P, IP44, 6H with "Quick Connect" screwless terminals
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are made of brass
With a maximum conductor size of 4,0 mm²
Flange size of 74x62 with fixing centers of 60x52
The inclination is 20°
Connection Technology: Quick-Connect Screwless
- All QUICK-CONNECT sockets are touch-safe
- Pressing the contact slide with your finger closes the terminal
- Reliable and permanent connection by means of spring-clamp technology
- The damage-free conductor clamping guarantees an optimum connection over the entire service life
- Rewiring without additional handling of the conductor
EAN: 4024941127721
