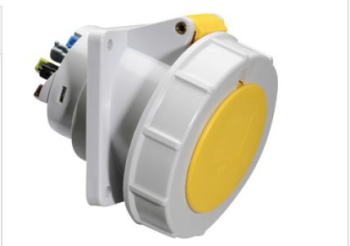

16A 110V 3P P/SKT IP67 ANG Q/C 85X85 FLANGE 70X70 FIXING
Stock Code: 12917
EAN: 4024941129176
EAN: 4024941129176
| Amp Current | 16A |
|---|---|
| Voltage | 110V |
| Pins | 2P+E |
| IP Rating | IP67 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 4H |
| Overall Dimensions | 85x85mm |
| Flange Size/Fixing Centers | Flange 85x85/Fixing Centers 70x70 |
| Product Type | Socket |
Panel Mounting Socket
16A, 110V, 3P, IP67, 4H with "Quick Connect" screwless terminals
Enclosure made of Polyamide
The contact carrier is made of polyamide, the contacts are made of brass
With a maximum conductor size of 4,0 mm²
Flange size of 85x85 with fixing centers of 70x70
The inclination is 20°
Connection Technology: Quick-Connect Screwless
- All QUICK-CONNECT sockets are touch-safe
- Pressing the contact slide with your finger closes the terminal
- Reliable and permanent connection by means of spring-clamp technology
- The damage-free conductor clamping guarantees an optimum connection over the entire service life
- Rewiring without additional handling of the conductor
EAN: 4024941129176
