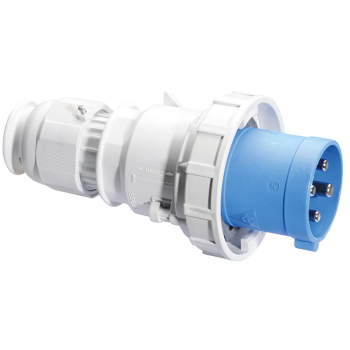

Plug 63A 230V 4P IP67
Stock Code: 2184
EAN: 4024941021845
EAN: 4024941021845
| Amp Current | 63A |
|---|---|
| Voltage | 230V |
| Pins | 3P+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 9H |
| Overall Dimensions | 234x114x114 |
| Product Type | Plug |
63 AMP plug – the 2184 is a 63A, 230V plug, 4-Pin, IP67, 9H. It has a screw-terminal connection and a multi-grip cable gland.
- Industrial 63 AMP plug
- 63A, 230V, 4-Pin, 9H
- Traditional screw terminal
- IP67 watertight
- Part-code 2184
- Manufactured by Bals
- Manufactured from polyamide
- Multi-Grip cable gland
- For cable diameter 16mm up to 36mm
- Brass nickel-plated contacts with a maximum conductor size of 6mm²
BALS “Multi-Grip” cable gland features a rubber seal which is firmly moulded on so that it facilitates connection. Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
Part of a wide range of Bals industrial plugs & sockets.
EAN: 4024941021845
