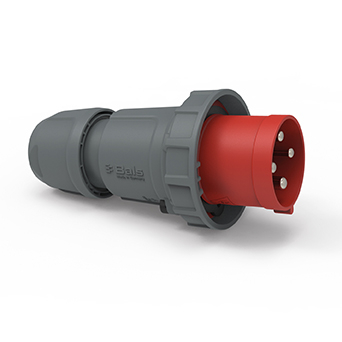

Plug 125A 400V 4P IP67
Stock Code: 2195
EAN: 4024941021951
EAN: 4024941021951
| Amp Current | 125A |
|---|---|
| Voltage | 400V |
| Pins | 3P+E |
| IP Rating | IP67 |
| Connection Technology | Screw Terminal |
| H Position | 6H |
| Overall Dimensions | 273x126x126 |
| Product Type | Plug |
125 AMP plug – the 2195 is a 125A, 400V plug, 4-Pin, IP67, 6H. It has a screw-terminal connection and a multi-grip cable gland.
- Industrial 125 AMP plug
- 125A, 400V, 4-Pin, 6H
- Traditional screw terminal
- IP67 watertight
- Part-code 2195
- Manufactured by Bals
- Manufactured from polycarbonate & polyester
- Multi-Grip cable gland
- For cable diameter 26mm up to 50mm
- Brass nickel-plated contacts with a maximum conductor size of 50mm²
BALS “Multi-Grip” cable gland features a rubber seal which is firmly moulded on so that it facilitates connection. Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
EAN: 4024941021951
