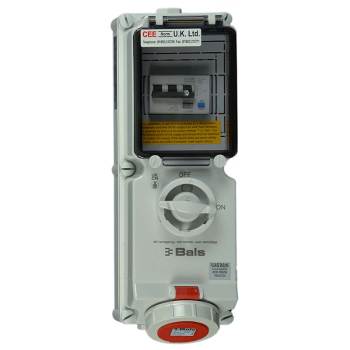

Switched Interlocked RCD Protected Socket 32A 400V 5P IP67 A Type
Stock Code: 880146-A
EAN: 5060943543083
EAN: 5060943543083
| Amp Current | 32A |
|---|---|
| Voltage | 400V |
| Pins | 3P+N+E |
| IP Rating | IP67 |
| Connection Technology | Pre-Wired |
| H Position | 6H |
| Overall Dimensions | 399x134mm |
| Protective Devices | 40A 30MA 4P RCD Type A |
| Product Type | RCD Interlocked Socket |
32 AMP protected switched interlocked socket – the 880146-A is a 32A, 400V RCD-protected switched-interlocked socket, 5-Pin, IP67, 6H.
- Industrial 32 AMP RCD protected switched-interlocked socket
- 32A, 400V, 5-Pin, 6H
- Pre-wired to RCD
- IP67 watertight
- Switched-interlocked socket with RCD protection
- Socket protected by 40A 30MA 4P RCD Type A
- Part-code 880146-A
- Manufactured by Ceenorm
- Enclosure manufactured from polycarbonate
- Contacts are brass-nickel plated
- Maximum conductor size of 25mm² to RCD & 10mm² to Earth
- Cable entry 3 x M25 threaded (1 top, 2 bottom)
- Size 399h x 134w
Part of a wide range of Ceenorm/Bals industrial surface sockets, which also includes unprotected switched-interlocked sockets and combination units.
Other circuit protection types are available upon request.
