Panel Mounting Inlet 63A 400V 5P IP67
Panel Mounting Inlet 63A 400V 5P IP67

Panel Mounting Inlet 63A 400V 5P IP67

Stock Code: 27017
EAN: 4024941270175

Amp Current63A
Voltage400V
Pins3P+N+E
IP RatingIP67
Connection TechnologyScrew Terminal
H Position6H
Overall Dimensions107x100mm

Descriptions

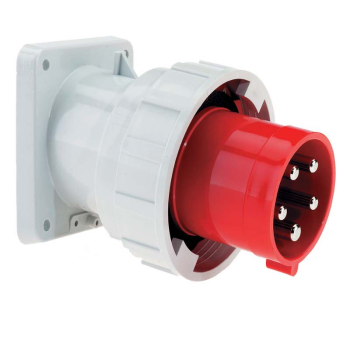

Panel Mounting Inlet Angled

63A, 400V, 5P, IP67, 6H with screw terminals

The inclination is 10°

Enclosure made of Polyamide

The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated

With a maximum conductor size of 6,0 mm²

Flange size of 107x100 with fixing centers of 85x79

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941270175
