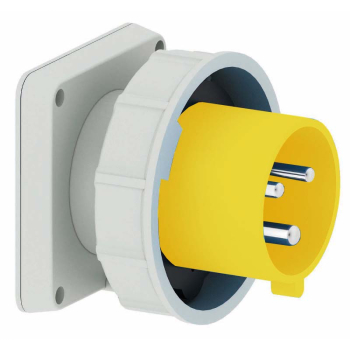

Panel Mounting Inlet 32A 110V 3P IP67
Panel Mounting Inlet 32A 110V 3P IP67

Panel Mounting Inlet 32A 110V 3P IP67

Stock Code: 28294
EAN: 4024941196758

Amp Current32A
Voltage110V
Pins2P+E
IP RatingIP67
Connection TechnologyScrew Terminal
H Position4H
Overall Dimensions85x85mm

Descriptions

Panel Mounting Inlet Straight

32A, 110V, 3P, IP67, 4H with screw terminals

Enclosure made of Polyamide

The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated

With a maximum conductor size of 6,0 mm²

Flange size of 85x85 with fixing centers 70x70

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941196758
