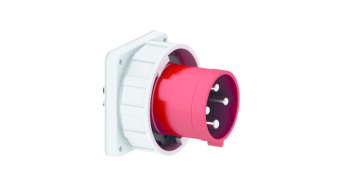

Flanged Inlet 63A 400V 4P IP67
Flanged Inlet 63A 400V 4P IP67

Flanged Inlet 63A 400V 4P IP67

Stock Code: 2836
EAN: 4024941028363

Amp Current63A
Voltage400V
Pins3P+E
IP RatingIP67
Connection TechnologyScrew Terminal
H Position6H
Overall Dimensions110x106mm

Descriptions

Panel Mounting Inlet Straight

63A, 400V, 4P, IP67, 6H with screw terminals

Enclosure made of Polyamide

The contact carrier is made of high temperature resistant material, the contacts are brass nickel plated

With a maximum conductor size of 16,0 mm²

Flange size of 110x106 with fixing centers 90x90

Collar in middle of flange

Connection Technology: Screw Terminal
- High self-cleaning effect when the plug pin is inserted and removed reduces the risk of soiling and therefore failure of the plug and socket
- Terminals accept all types of conductors without problem

EAN: 4024941028363
