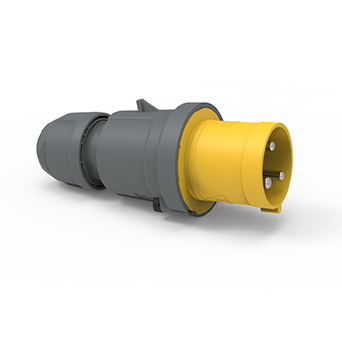

Plug 63A 110V 3P IP44
Stock Code: 21024
EAN: 4024941210249
EAN: 4024941210249
| Amp Current | 63A |
|---|---|
| Voltage | 110V |
| Pins | 2P+E |
| IP Rating | IP44 |
| Connection Technology | Screw Terminal |
| H Position | 4H |
| Overall Dimensions | 234x97x98 |
| Product Type | Plug |
63 AMP plug – the 21024 is a 63A, 110V plug, 3-Pin, IP44, 4H. It has a screw-terminal connection and a multi-grip cable gland.
- Industrial 63 AMP plug
- 63A, 110V, 3-Pin, 4H
- Traditional screw terminal
- IP44 splashproof
- Part-code 21024
- Manufactured by Bals
- Manufactured from polyamide
- Multi-Grip cable gland
- For cable diameter 16mm up to 36mm
- Brass nickel-plated contacts with a maximum conductor size of 6mm²
BALS “Multi-Grip” cable gland features a rubber seal which is firmly moulded on so that it facilitates connection. Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
Part of a wide range of Bals industrial plugs & sockets.
