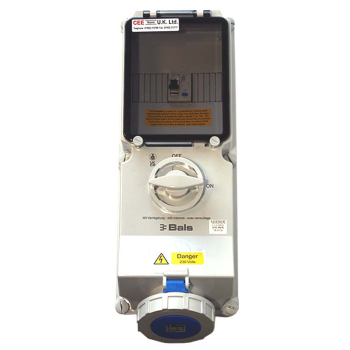

Switched Interlocked RCD Protected Socket 63A 230V 3P IP67 A Type
Switched Interlocked RCD Protected Socket 63A 230V 3P IP67 A Type

Switched Interlocked RCD Protected Socket 63A 230V 3P IP67 A Type

Stock Code: 880126-A
EAN: 5060943543182

Amp Current63A
Voltage230V
Pins2P+E
IP RatingIP67
Connection TechnologyPre-Wired
H Position6H
Overall Dimensions500x180mm
Protective Devices63A 30MA DP RCD Type A

Descriptions

Switch Interlocked Socket with Protection

63A, 230V, 3P, IP67, 6H pre-wired to RCD

Socket protected by 63A 30MA DP RCD Type A

Other circuit protection available upon request

With a maximum conductor size of 25,0 mm² to RCD, 10 mm² to Earth

Height x Width: 500x180mm

EAN: 5060943543182

All back boxes are supplied drilled for cable entry: 3 x 32mm
