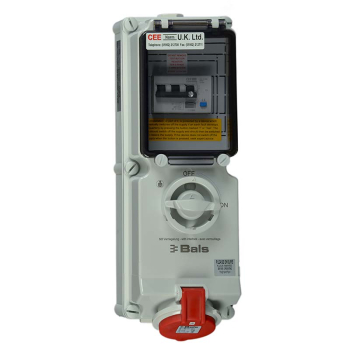

Switched Interlocked RCD Protected Socket 32A 400V 4P IP44 A Type
Switched Interlocked RCD Protected Socket 32A 400V 4P IP44 A Type

Switched Interlocked RCD Protected Socket 32A 400V 4P IP44 A Type

Stock Code: 880456-A
EAN: 5060943542482

Amp Current32A
Voltage400V
Pins3P+E
IP RatingIP44
Connection TechnologyPre-Wired
H Position6H
Overall Dimensions399x134mm
Protective Devices40A 30MA 4P RCD Type A

Descriptions

Switch Interlocked Socket with Protection

32A, 400V, 4P, IP44, 6H pre-wired to RCD

Socket protected by 40A 30MA 4P RCD Type A

Other circuit protection available upon request

With a maximum conductor size of 25,0 mm² to RCD, 10 mm² to Earth

Height x Width: 399x134mm

EAN: 5060943542482

All back boxes are supplied drilled for cable entry: 3 x 25mm threaded
