Plug 32A 230V 3P IP67
Stock Code: 21240
EAN: 4024941212403
EAN: 4024941212403
| Amp Current | 32A |
|---|---|
| Voltage | 230V |
| Pins | 2P+E |
| IP Rating | IP67 |
| Connection Technology | Quick Connect / Screwless Terminal |
| H Position | 6H |
| Overall Dimensions | 210x217mm |
| Product Type | Plug |

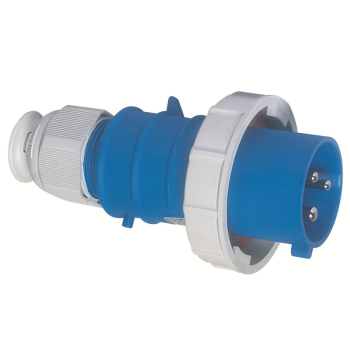

32 AMP plug – the 21240 is a 32A, 230V plug, 3-Pin, IP67, 6H. It has Quick-Connect screwless terminals and a multi-grip cable gland.
- Industrial 32 AMP plug
- 32A, 230V, 3-Pin, 6H
- Quick-Connect screwless terminals
- IP67 watertight
- Part-code 21240
- Manufactured by Bals
- Manufactured from polyamide
- Multi-Grip cable gland
- For cable diameter 11mm up to 23.5mm
- Brass nickel-plated contacts with a maximum conductor size of 6mm²
QUICK-CONNECT plugs from Bals offer screwless connection, are quicker to install and are maintenance free, offering a long-term secure connection.
BALS “Multi-Grip” cable gland features a rubber seal which is firmly moulded on so that it facilitates connection. Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable.
Part of a wide range of Bals industrial plugs & sockets, which also includes an alternative traditional screw-terminal plug.
